Product Spec
Color
Black
Compatibility
Features

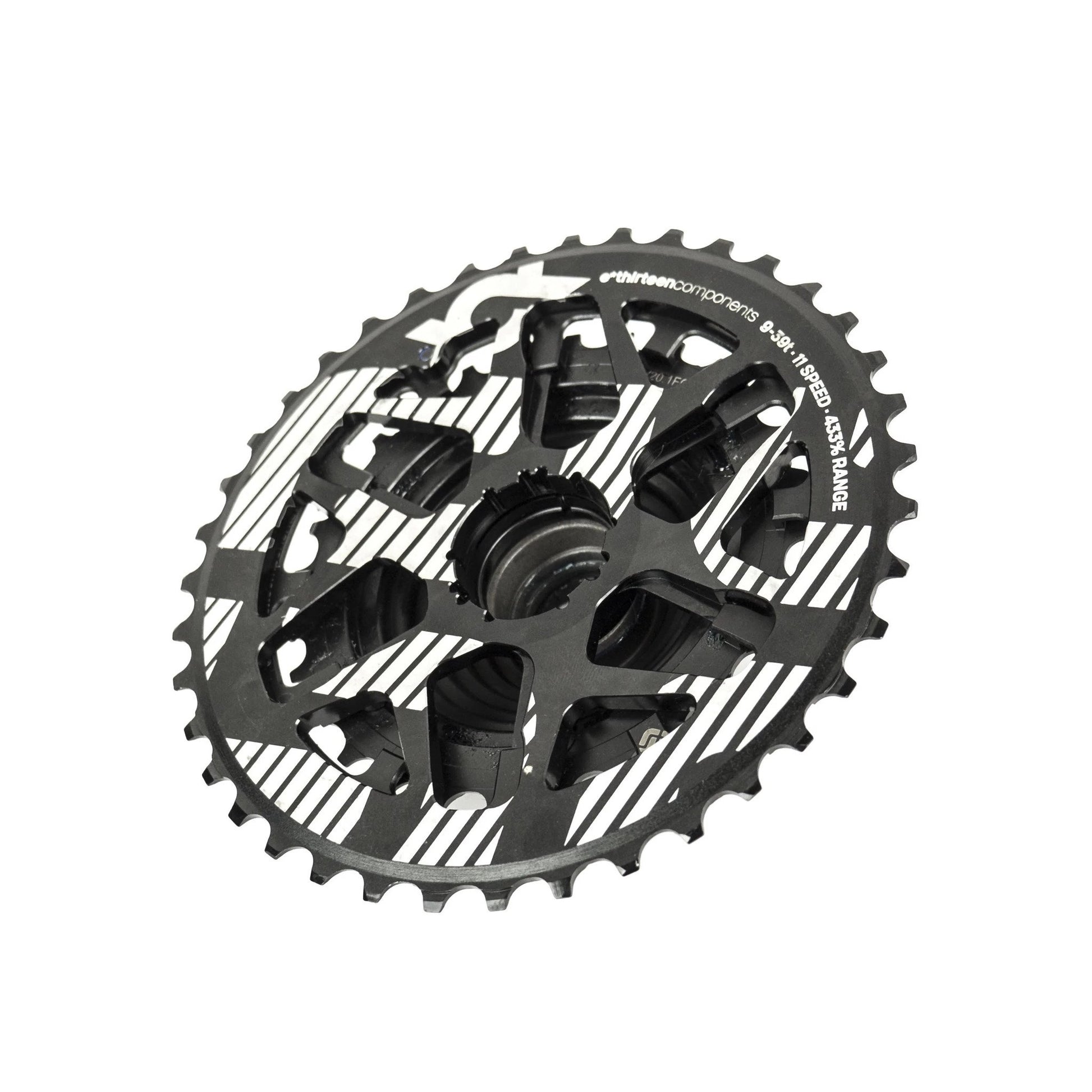

Our 9t cog allows for greater range in an overall more compact and lighter drivetrain. Smaller cogs allow for a smaller chainring, improving ground clearance and reducing the amount of chain needed. Less material, less weight.

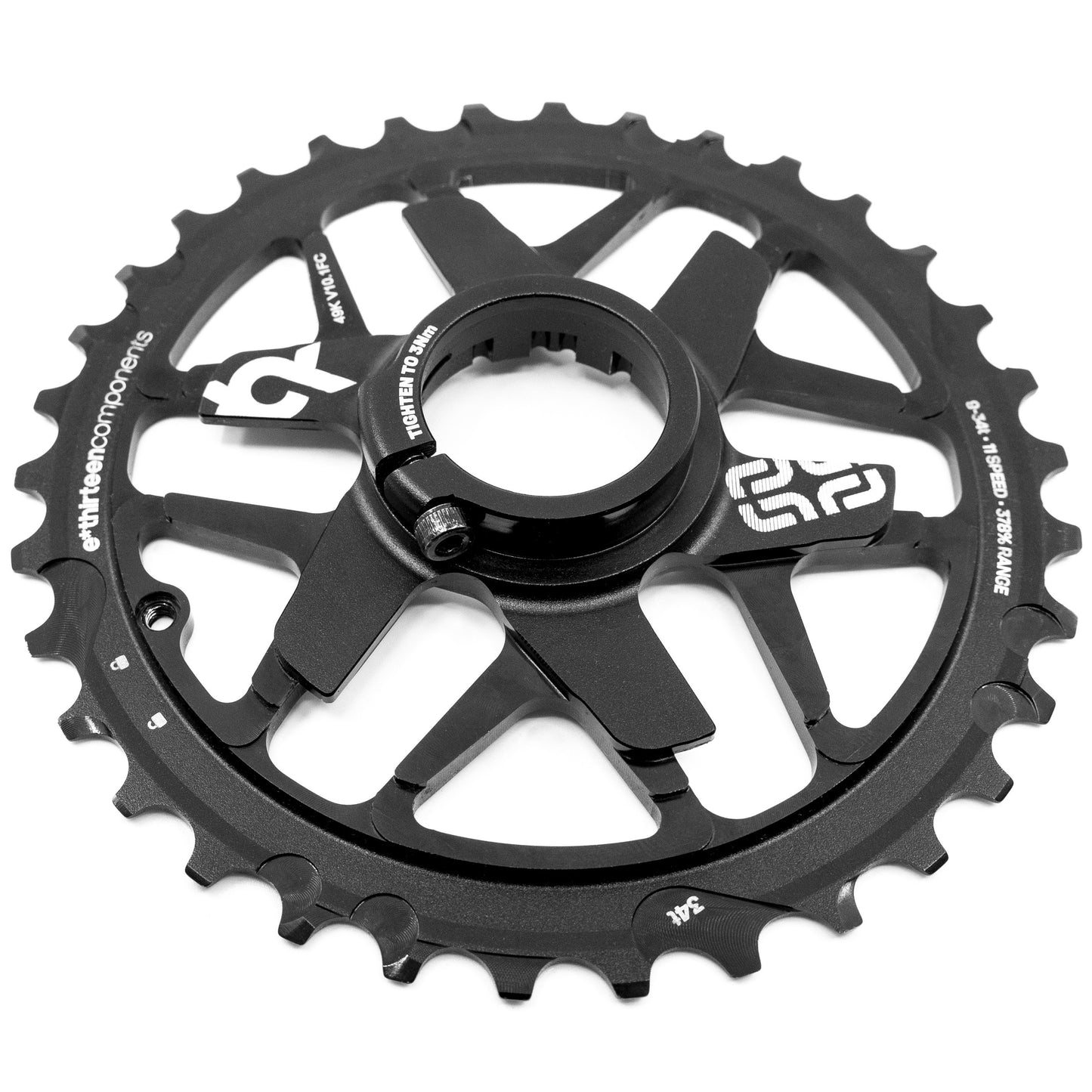

Aluminum cluster mounts to an XD™ Driver with a 3mm pinch bolt.
Steel cluster mounts to the aluminum with a standard cassette spline tool.
Removes simply with a chainwhip and cassette tool.
Keeps your drivetrain simple and still gives the gear range of a 2X system.
Aluminum cluster mounts to an XD™ Driver with a 3mm pinch bolt.
Steel cluster mounts to the aluminum with a standard cassette spline tool.
Removes simply with a chainwhip and cassette tool.
Keeps your drivetrain simple and still gives the gear range of a 2X system.
Freehub Mount
XD™ and XDR™ (with supplied shim) Drivers Only
Material
1 aluminum Cog, 10 steel Cogs
Range
9-34T: 378%, 9-39T: 433%,
9-42T: 467%
Size
9-34t: 9,11,13,15,17,19,21,24,27,30,34
9-39t:9,11,13,15,17,19,21,24,28,33,39
9-42t: 9,11,13,15,17,20, 23, 27, 31, 36, 42
9-39t:9,11,13,15,17,19,21,24,28,33,39
9-42t: 9,11,13,15,17,20, 23, 27, 31, 36, 42
Speeds
11
Weight
9-34T: 279g, 9-39T: 329g, 9-42T: 356g
Tech Info
User manual
How-to install
Frequently Asked Questions
Guaranteed to be free from defects in materials or workmanship for 5 years after original purchase
