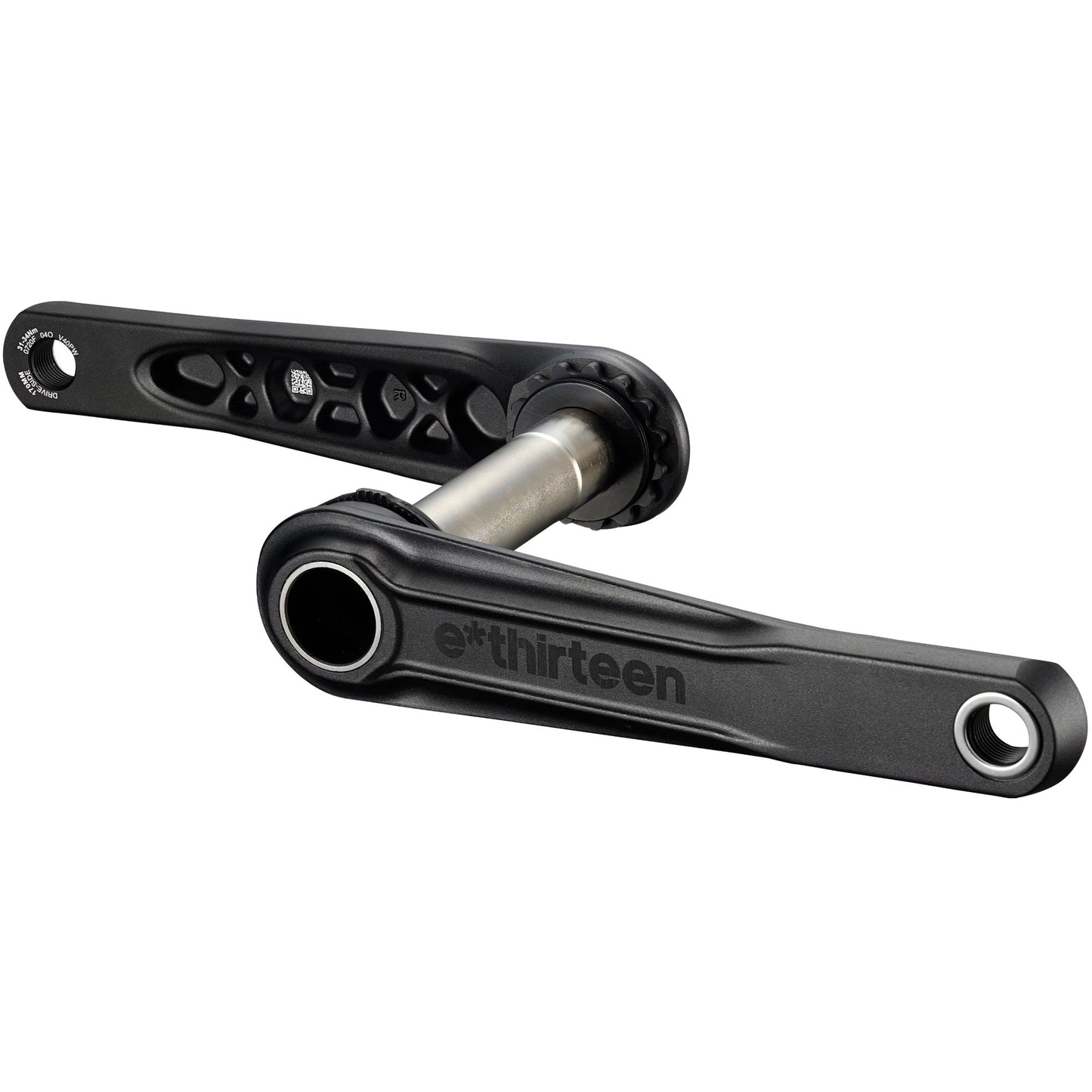

Helix Core Alloy Cranks

Helix Core Alloy Cranks

Starting at
Regular price €139.95 EUR
Sale price €139.95 EUR Regular price
Sale Sold out
Tax incl. Shipping policy Free Domestic Shipping at $100.00

SKU:CS4HBA-100

Size
View full details
Lighter, stronger and more value than the competition.

Helix Cranks proven forged AL-6066 alloy for trail weights and Enduro strength and durability.  Engineered with weight reduction features into the mold, resulting in a sleek, minimalist aesthetic. CNC cuts further optimize weights for a crank that's equally at home on long singletrack days and for bikepark shuttles. The AL6066-T6 arms are paired with a 24mm heat treated chromoly spindle, resulting in a crankset that hits way over its price point.
Exemplifying cross compatibility, Helix Core Cranks fit with flip-flop Helix Race or Helix Chainrings in a range of colors from 28 to to 34t and can achieve both Boost and SuperBoost chainlines, and perform equally well with both SRAM™ and Shimano™ 11 and 12-speed drivetrain systems. Equipped with a self-extractor bolt system, and creak-free proven Quick Connect interface, you get all the benefits of higher-end cranks without a heavy price tag.

  • Available in 170mm and 175mm sizes
  • Ultra light, yet rated to enduro loads and impacts at 589 grams in 170mm
  • Designed to reduce weight with features into the mold, resulting in a sleek, minimalist aesthetic
  • CNC cuts further optimize weights for a crank that's dependable on any ride
  • AL6066-T6 arms are paired with a 24mm heat treated chromoly spindle for larger bearings and dependability
  • Unmatched cross compatibility, Helix rings perform equally well with both SRAM™ and Shimano™ 11 and 12-speed drivetrain systems
  • Helix Cranks fit with flip-flop Helix Race, Plus, or Base Chainrings in a range of colors from 28 to to 34t to achieve both Boost and SuperBoost chainlines


Chainrings are sold separately.

Chainline
Chainline spacers achieve non-Boost, or Boost.
Chainring
Helix R Direct Mount Chainring, Helix Plus Direct Mount Chainring, Helix Base Direct Mount Steel Chainring
Color
Black w/Water Decal
Compatibility
All frames w/ 68/73mm BB shell.
Features
Spindle on NDS for easy drivetrain maintenance, adjustable chainline, and 8mm self-extractor
Included
Crankset, BB/lockring tool, lockring, APS adjuster, User Manual, and sticker
Length
170mm, 175mm
Material
7050 Aluminum
Self Extractor
Yes
Spindle
Width: 68/73mm

Diameter: 24mm

Interface: P3 Connect
Weight
g (w/32T SL Ring)
Width
Q FACTOR:

Collapsible content

User manual

How-to install

Frequently Asked Question

Helix Core Alloy Cranks

Guaranteed to be free from defects in materials or workmanship for 5 years after original purchase
